Boiler Fly Ash Air Jet Filter Dust Collector Air Filter Pulse System For Cement

Boiler Fly Ash Dust Filter Air Filter For Dust Collector Cement

Product introduction:
Bag dust collector is a filtering dust removal equipment based on the filtering principle. It uses fiber or inorganic fiber filter cloth to filter dust in the gas. Dust-containing gas enters from the air inlet of the dust collector bellows and is guided to the ash hopper through the inclined partition. At the same time, the air flow speed slows down. Due to inertia, coarser dust particles in the gas fall into the ash hopper, and fine dust particles bend upward with the air flow and enter the filter chamber. Dust adheres to the surface of the filter bag. The purified gas passes through the filter bag and enters the upper dust cleaning chamber. The gas is collected by each sub-dust cleaning chamber through the air outlet, sucked out by the main fan of the dust removal system, and discharged into the atmosphere.

Performance characteristics:
1. Special flow channel design, especially suitable for dust control in heavy dust fields such as casting and metallurgy.
2. Equipped with variable frequency energy-saving technology and PLC automatic control system;
3. Large-capacity gas storage device, high-pressure online continuous pulse airflow cleaning effect is thorough, the equipment is not affected by the cleaning and works continuously, and is suitable for high-concentration dust-containing gas;
4. There are various options for filter materials. For different customers, high temperature resistance, acid and alkali resistance, anti-static, waterproof and anti-gas, oil and gas resistance, etc. can be selected;
5. Easy installation, stable and reliable operation, simple operation and maintenance, no secondary pollution.

6. Suitable for dust control with a large range of dust-containing gas concentration changes. When gas concentration changes, dust removal efficiency and resistance of dust collector also change.

Specification:

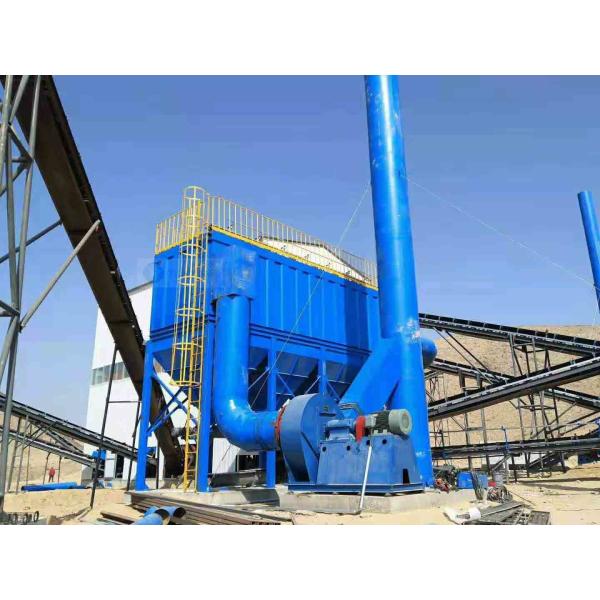

Customer site:

Boiler air jet filter dust collector

Pulse air jet filter dust collector

Cement dust collector pulse jet system

Boiler Fly Ash Air Jet Filter Dust Collector Air Filter Pulse System For Cement Images
